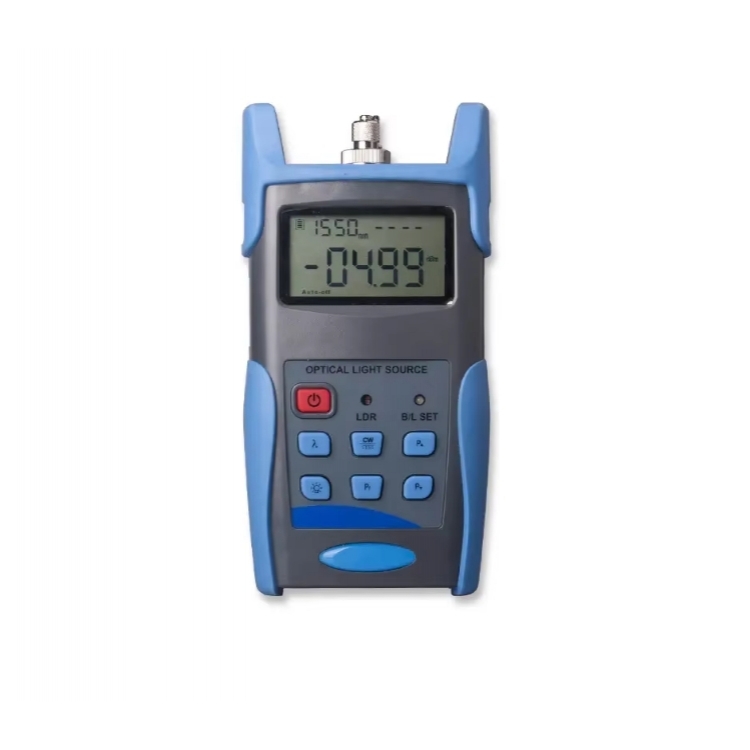

OLS-702 Accumulate credit times Optical Light Source

OLS-702 Accumulate credit times Optical Light Source Features

·  Wave ID information can be transmitted when used with OPM-702 Optical Power Meter.

·  Tone generation, 270HZ,330HZ,1KHZ,2KHZ

·  Output power can be adjustable

·  Output power value is shown on LCD display

·  Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)

·  AA alkaline and AC adapter for power supply

·  Low battery indication

OLS-702 Accumulate credit times Optical Light Source Specifications

Model	OLS-702
Model	OLS-702V	OLS-702-SM	OLS-702-MM	OLS-704
Operating wavelength（nm）	650	1310/1550	850/1300	850/1300/1310/1550
Applicable fiber	SM，MM
Laser type	FP-LD(others specify on requests)
Output Power（dBm）	-5~-12dBm  （can be adjustable）
Adjustable step size（dBm）	＜0.5
Stability(dB，30min，20℃)	0.15
Modulation（Hz）	CW， 270，330，1K，2K
Fiber Port	FC/PC
Alkaline Battery	3*AA，1.5V
Power Supply Adaptor(V)	8.4
Battery Operating time(h)	45
Operation Temperature(℃)	-10～+60
Storage Temperature(℃)	-25～+70
Dimension	23.5*16*8cm
weight	0.7kg

Next:OLS-502 Accumulate credit times Optical Light Source
