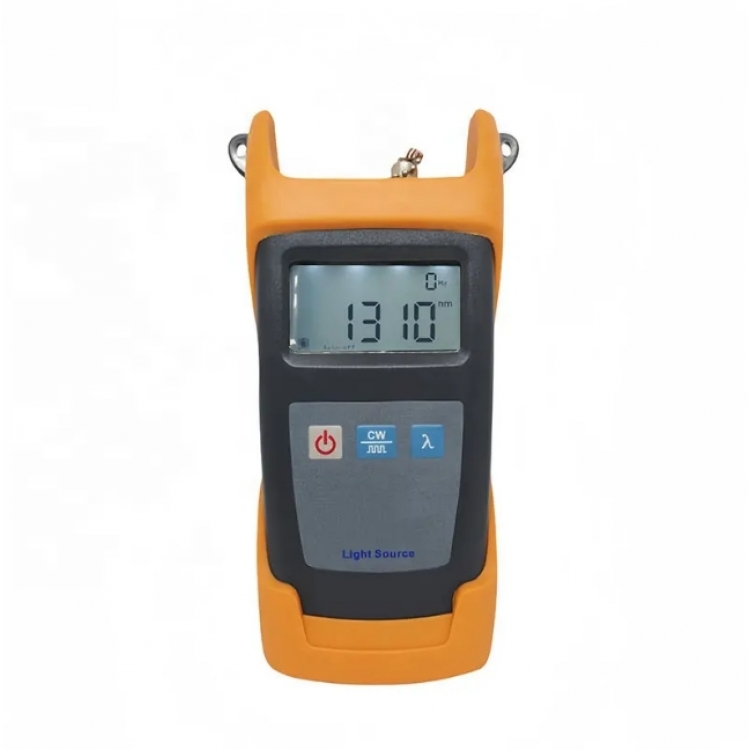

OLS-502 Accumulate credit times Optical Light Source

OLS-502 Accumulate credit times Optical Light Source Features

· Provides 1~6 wavelengths output which can be optional according to customers’ needs

· CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.

· High stability of the output power

· Stable output wavelength

· Backlight LCD display supports night operation

· Low battery power indication

OLS-502 Accumulate credit times Optical Light Source Specifications



Type	OLS-502
MODEL	OLS-502V	OLS-502-SM	OLS-502-MM	OLS-502Q1
Wavelengths(nm)	650	1310/1550	850/1300	850/1300/1310/1550
Emitter Type	FP-LD,LED
Typical Output Power(dBm)	0@650nm / -7 @1310nm,1550nm, -20dBm for LED
Spectral Width(nm)	≤10
Output Stability	±0.05dB/15mins;  ±0.1dB/ 8hours
Modulation Frequencies	CW.2Hz@650nm / CW,270Hz,1KHz,2KHz@1310nm,1550nm CW,270Hz,1KHz,2KHz
Optical Connector	FC/PC(Other type adapters can be required)
Power Supply	Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V)
Battery Operating Time(hour)	45
Operating Temperature(℃)	-10~+60
Storage Temperature(℃)	-25~+70
Dimension	23.5*16*8cm
Weight	0.7kg
OLS-502 Accumulate credit times Optical Light Source Recommendation
OLS-502 Accumulate credit times Light Source is designed for optimal use with OPM-502 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable.



Previous:OLS-702 Accumulate credit times Optical Light Source
Next:OLS1-DUAL NOYES Optical Light Source
