FLS-241 EXFO visual fault locator

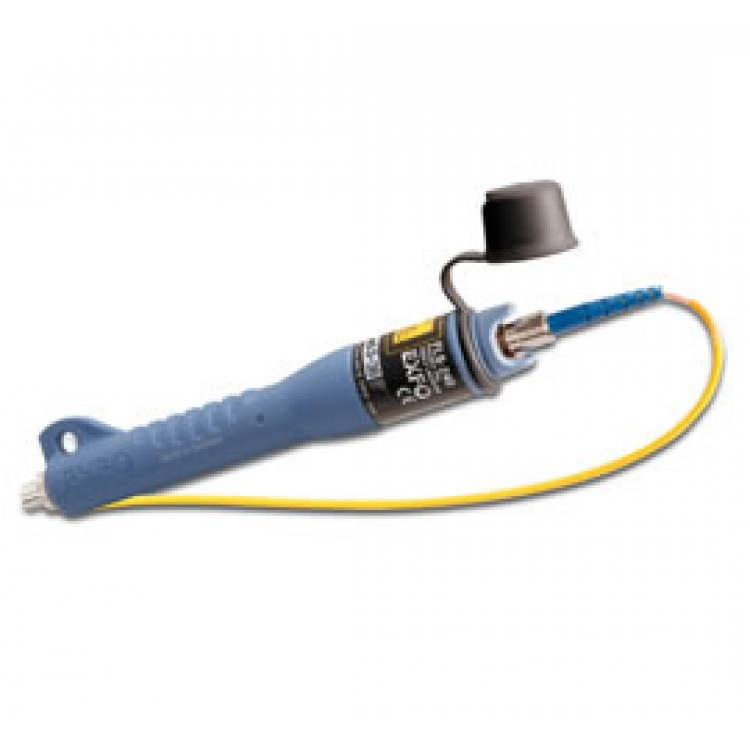

FLS-241 EXFO Optical visual fault locator Description:

The Pocket Pal is the easiest way to identify fibers from end to end and locate polished connector endfaces. Its red laser shines through most yellow-jacketed fibers to help you pinpoint breaks, bends, faulty connectors, splices and other causes of signal loss. It has a reach of up to 5 km*.
The convenient FLS-240 locates faults visually by creating a bright red glow at the exact location of the fault on singlemode or multimode fibers.

Robust Design
Due to its small size, light weight and simple but proven design, the Pocket Pal can accompany you anywhere. In your pocket or belt pouch, carry your FLS-240 to the most demanding environments. To ensure ruggedness, it features rubber seals, a fully enclosed laser head and a long-lasting On/Off switch. It has been tested to provide reliable
operation under intensive use and harsh conditions.

Cost-Effective
The Pocket Pal's extremely high efficiency guarantees prolonged operation with two standard AAA alkaline batteries, typically providing 50 hours of uninterrupted operation.

Priced to accommodate the tightest budgets, the FLS-240 Pocket Pal is a truly affordable way to locate faults in OTDR dead zones. Its effectiveness justifies purchasing one for just about every fiber technician.

FLS-241 EXFO Optical visual fault locator Features:

Bright red laser at 635 nm

Pulsed and CW operation

50 hours of operation (typical)

Standard AAA alkaline batteries

Rugged and weatherproof

2.5 mm universal connector

FLS-241 EXFO Optical visual fault locator Specifications:

Operation (Hz)	2 to 4
Wavelength (nm)	630 to 645
Emitter type	Laser
Power output (typical) (mW)	0.6
Distance range (typical) (km)	5
Operation mode	Pulsed and CW





FLS-241 EXFO Optical visual fault locator GENERAL SPECIFICATIONS

Power supply	2 AAA alkaline batteries
Laser class	2
Battery life (h) flashing	50
Length	17.5 cm
Maximum diameter	2.5 cm
Weight	Empty 80g, with batteries 120g
Temperature	Operating -10°C to 50°C, storage -30°C to 60°C

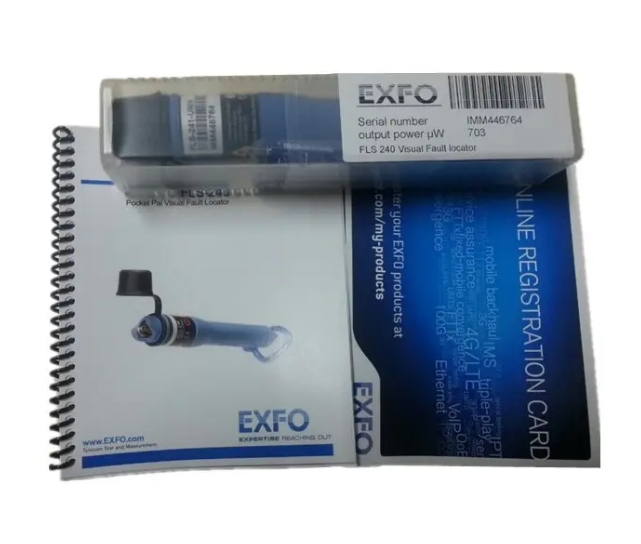

FLS-241 EXFO Optical visual fault locator Packaging

Includes	1.Two AAA alkaline batteries
	2.Instruction manual
	3.Clip to hook the unit to a belt
