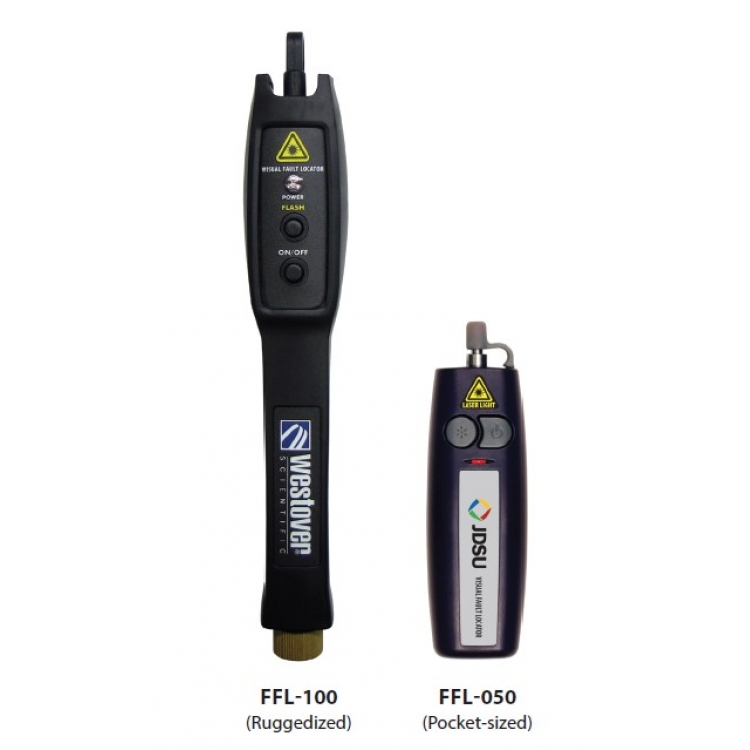

FFL050/FFL100 visual fault locator

The visual fault locator (VFL) is an essential tool that quickly and easily locates problem areas in fiber cables. By pinpointing the exact location of fiber damage, technicians can diagnose, troubleshoot, and fix the problem efficiently.

Locate sharp bends, breaks, and damages in fiber

Conduct end-to-end continuity tests

Perform fiber tracing and identification

FFL-050/FFL-100 VIAVI visual fault locator Features

 • Compact, ergonomic design for ultimate portability
• Visible wavelength is 650 nm
• High powered laser (1 mW) for single-mode (> 7 km) and multi-mode (> 5 km) connectors
• Continuous or Flash illumination
• Universal connector interface for quick and easy connection
• 2.5 mm connector input (1.25 mm adapter available)
• Includes soft-sided carrying case with belt loop

FFL-050/FFL-100 VIAVI visual fault locator Application

• Locate sharp bends, breaks, and damages in fiber
• Conduct end-to-end continuity tests
• Perform fiber tracing and identification Benefits
• Easy-to-use
• Quickly and easily  locate damage in  optical fiber

• Continuous and Flashing illumination modes

• Economically priced
• Ruggedized and designed for demanding field use
• Long-lasting battery life
• Protective rubber end cap

FFL-050/FFL-100 VIAVI visual fault locator Specifications

	FFL-050 (Pocket-sized)
Dimensions	11.4 x 3.5 x 2.0 cm (4.5 x 1.4 x 0.8 in)
Weight	46 g (1.6 oz) with two AAA batteries
Fiber Compatibility	Single-mode, Multimode
Wavelength	650 nm (visible)
Laser Safety Rating	Class II
Output Power	1.0 mW max
Output Modes	Continuous and flashing
Range	> 7 km single-mode ; > 5 km multimode
Connector Interface	Universal 2.5 mm (fixed) Universal 1.25 mm adapter (sold separately)
Controls	ON/OFF  Continuous/Flashing
Battery Type	Two AAA
Battery Life	30+ hours on continuous
Carrying Case	Soft-sided with belt loop
Safety	1992, EN 61010-2, CE
Warranty	1 year
