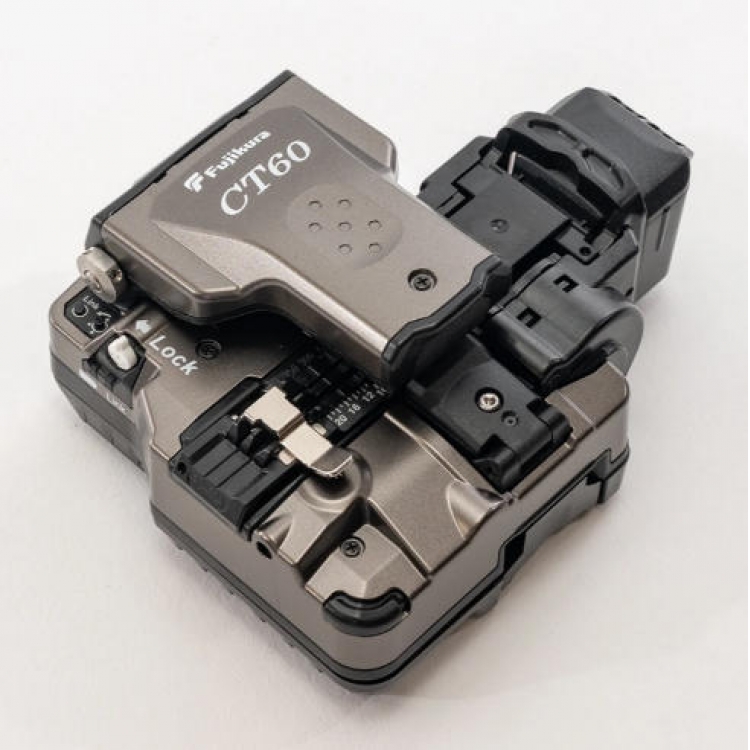

CT60 Fujikura Optical Fiber Cleaver

CT60 Fujikura Optical Fiber Cleaver Features
Motorized blade rotation
Bluetooth communication
Shock resistant
Simple one-step operation
60,000 cleave blade life
Field serviceable

CT60 Fujikura Optical Fiber Cleaver Specifications

Applicable Fiber	Fiber type	Single-mode optical fiber
		Multimode optical fiber
	Fiber count	Single, up to 16 fibers
	Cladding diameter	Approx. 125 μm
Applicable Coating	Fiber plate	AD-60A: Max. 900 µm coating diameter maximum
		AD-60B: Max. 3 mm coating diameter maximum
	Fiber holders	FH-50, FH-60, FH-70, FH-100 and FH-110 series
Cleave Length	Fiber plate	AD-60A: ≤ 250 µm – 5 ~ 20 mm, 900 µm – 10 ~ 20 mm
		AD-60B: 3 mm Max – 14 ~ 20 mm
	Fiber holder	Approx. 10 mm
Cleave Angle	Single fiber	Avg. 0.3 to 0.9 degrees
	Fiber ribbon	Avg. 0.3 to 1.2 degrees
Blade Life		Approx. 60,000 fiber cleaves
Physical description (lever closed)	Dimensions W	Approx. 113 mm
	Dimensions D	Approx. 92 mm
	Dimensions H	Approx. 54 mm
	Weight	Approx. 293g including battery and AD-60A
Environmental condition	Temperature	Operate: -10°C to 50°C
		Storage: -40°C to 80°C
	Humidity	Operate: 0 to 95%RH non-condensing
		Storage: 0 to 95%RH non-condensing
Battery		2 ea. batteries LR03/AAA dry battery
Wireless interface		Bluetooth 5.2
Screw hole for tripod		1/4-20UNC
Other features	Blade rotation	Motorized rotation
		Manual rotation dial
	Replaceable items	Blade
		Clamp arm
