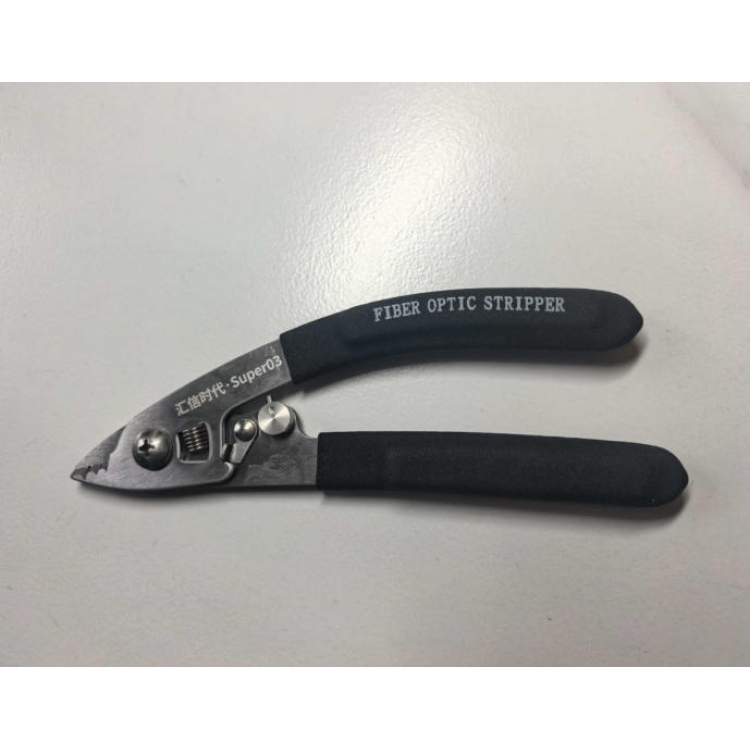

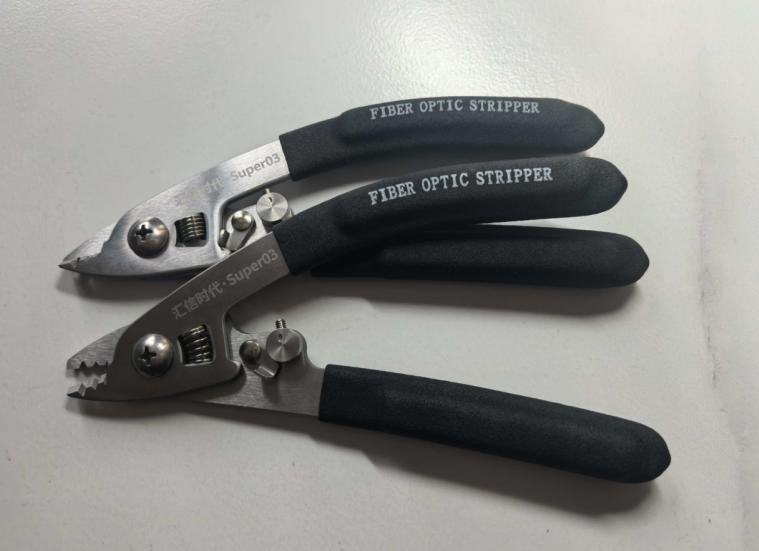

Super03 Fiber Optic Strippers

 Super03 Fiber Optic Strippers Key features

Three-in-one multifunctional design : integrated three precision stripping holes. Pinhole : Strips 250μm of the coating from a 125μm optical fiber. Middle hole : Strip the 250μm tight jacket layer (protected by white soft adhesive) of the 900μm optical fiber. Large hole : Peel off the outer sheath of the pigtail from 2mm to 3mm.

Precision -machined jaws and adjustable hexagonal screws ensure precise opening matching, perfectly stripping the coating while protecting the optical fiber from damage.

One-handed efficient operation : Built-in spring automatic return mechanism, easy and smooth operation, freeing up the other hand and increasing working speed.

Safety lock and durable structure : The integrated safety lock is convenient for storage and effectively protects the precision jaws to prevent accidental contact and injury. High carbon steel material is durable.

Humanized grip experience : The ergonomic rubber handle is non-slip and comfortable, reducing hand fatigue during long working hours.



Super03 Fiber Optic Strippers Specifications

Items/Models	Super03
Stripping range	125μm bare fiber ~ 3mm pigtail jacket
Specific functions	Peel off 125μm coating layer, 900μm tight jacket layer, 2-3mm outer sheath
Material	Forged from high carbon steel, blackened surface, coated with anti-rust oil
Safety Design	Integrated lock
Handle Design	Ergonomic rubber handle



Super03 Fiber Optic Strippers Application Scenarios

Fiber to the Home (FTTH) : Butterfly Cable Terminal Processing and Access

Data Center : Server and Switch Patch Cord Customization and Maintenance

Optical cable splicing and terminal processing in telecommunication networks

Fiber optic cabling for broadcasting and television networks and security monitoring systems

Laboratory fiber optic device production and scientific research teaching
