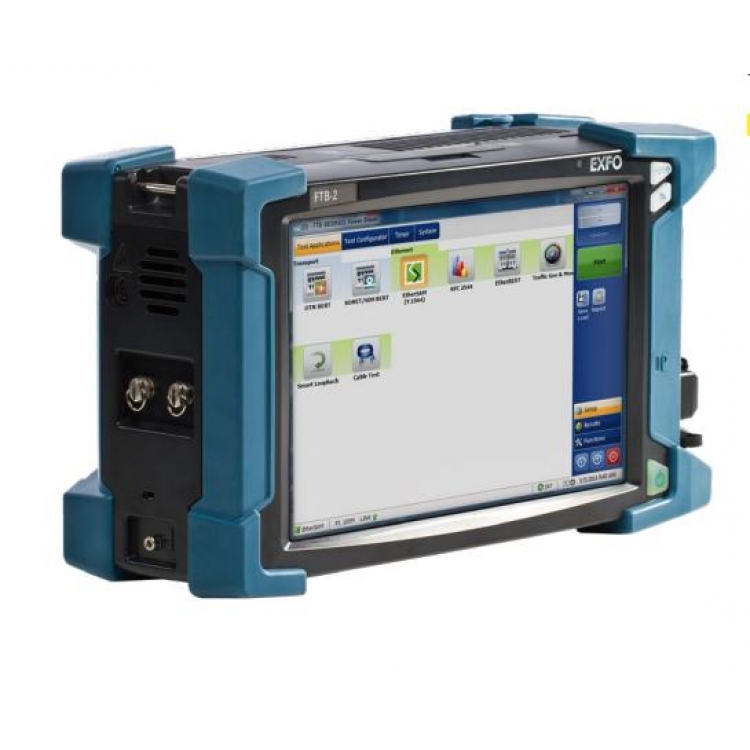

FTB-2-7600E EXFO 50DB OTDR Description
The FTB-2 Pro is the most compact solution on the market for multirate, multitechnology, multiservice testing, delivering all the power of a high-end platform in a conveniently sized, go-anywhere field-testing tool.
Nowadays, with the complexity and extent of modern networks, technicians need more than a few tools in their belt to get the job done right the first time. They need OSAs, Ethernet multiservice modules and OTDRs with fiber inspection probes. You name it, the technician needs it. But what makes the supertech “super” is the ability to drill down effortlessly and perform all tests quickly and accurately, cutting costs and saving time. That’s the added value, and that’s one of the many advantages that the FTB-2-Pro brings to the table.
The FTB-2 Pro is by far the smallest, most compact high speed multitechnology test platform out there. The FTB-2 Pro offers the most versatility: This is your go-anywhere, test-anything platform.
Designed for applications such as:
Fiber characterization
Gigabit/10G Ethernet configurations
ROADM commissioning
Multiservice transport testing
100G testing
FTB-2-7600E EXFO 50DB OTDR Key features
Connect anywhere: USB, mobile, Wi-Fi, VPN and Bluetooth
Loaded with utilities: all the tools required to maximize field testing, and any third-party application
Like a PC: available with a dual- or quad-core processor and Windows-based operating system
EXFO Connect-compatible: automated asset management—data goes through the cloud and into a dynamic database
FTB-2-7600E EXFO 50DB OTDR APPLICATIONS
Gigabit/10 Gigabit Ethernet configurations Gigabit Ethernet analyzer, OTDR and optical spectrum analyzer with polarization controller.
Fibre Channel Fibre Channel is the protocol for the communication structure dedicated to carrying different types of traffic for applications that require first-rate capabilities of storage and technologies.
ROADM commissioning Insert an OSA within this compact, portable solution for fast and accurate DWDM commissioning and turn up of high-speed networks up to 100/200/400 Gbit/s.
Multiservice testing Easily turn up, validate and troubleshoot DSn/PDH, SONET/SDH and Ethernet services up to 10 Gbit/s in converged optical networks. Delivering IPTV test capabilities and transmission control protocol (TCP) throughput assessment.
Fiber characterization and troubleshooting OTDR/iOLM testing combined with fiber endface inspection and optical power measurement for fiber characterization and troubleshooting of any network, including access, LAN/WAN, data center, FTTx, metro, long-haul and ultra-long-haul.
FTTH testing With a dynamic range of up to 39 dB and enabling power meter and visual fault locator functionalities, the PON FTTx/MDU OTDR module allows fiber installers to seam
Ethernet testing from 10 Mbit/s to 100 Gbit/s 100% line-rate testing of IP traffic at up to 100G; RFC 2544 and ITU-T Y.1564 Ethernet service activation with full statistics, and packet capture, traffic filtering, ping and traceroute with clear pass/fail verdicts.
CWDM turn-up testing Integrate CWDM OTDR to test through CWDM-based MUX/DEMUX at ITU-recommended wavelengths.
DWDM testing Highly accurate and reliable DWDM network commissioning, troubleshooting and channel analysis.lessly characterize splitters in PON FTTx and multiple dwelling unit (MDU) applications.
FTB-2-7600E EXFO 50DB OTDR Specifications
