RD8200 Radiodetection locator and TX10 transmitter underground pipe and cable fault

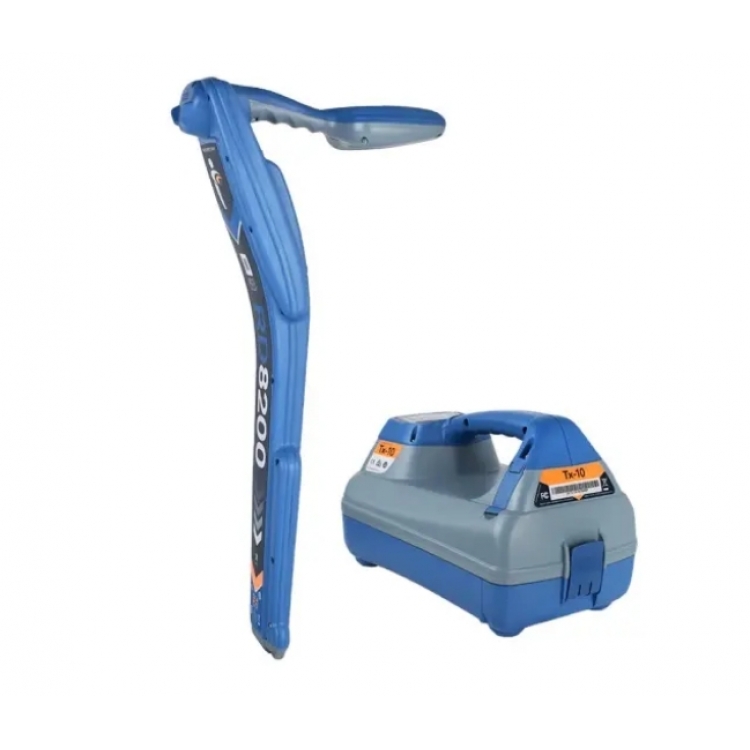

RD8200 underground pipe and cable locator Product Description

The RD8000/8200PDL and PXL are powerful successors to the industry standard RD4000PDL and PXL pipe and cable locators. The RD8000/8100 improves on speed, accuracy and reliability yet remains a cost-effective solution for any application delivering unique user features. Designed with the latest digital software, RD8000/8100 delivers a highly controllable and reliable locate solution to service any industry, anywhere in the world.

RD8200 underground pipe and cable locator Specifications：

ACTIVE MODES RD7200 RD8200 RD8200G Active Frequencies B 21 21 Custom frequencies   5 5 Sonde frequencies 4 4 4 Peak, Nul, Peakt, Guidance mode ✔ ✔ ✔ Broad Peak (single antenna mode)   ✔ ✔ Fault Find ✔ ✔ ✔ Current Direction" (ind target amongst mutiple cables)   ✔ ✔ PASSIVE MODES         Power, Radio, CPS ✔ ✔ ✔ Power Filters" (Power cable discrimination) ✔ ✔ ✔ Depth in power mode ✔ ✔ ✔ CATV, Passive avoidance   ✔ ✔ SURVEY DATA & CONNECT IVITY BLE (Bluetooth low energy) ✔ ✔ ✔ i iLoc" (Rx control of transmitter)   ✔ ✔ Survey measurements   ✔ ✔ Built-in GPS   ✔ ✔ User Activity data logging     ✔ Ordering information RD8200 locators: RD8200 RD8200G Locate Frequencies 22 22 Sonde Frequencies 4 4 Passive Modes 5 5 On-board GPS   ✔ Power Filters ✔ ✔ Usage-Logging   ✔ Survey Measurements ✔ ✔ CAL SafeTM ■ ■ 4 kHz 4K+CD 4K+CD Current Direction ✔ ✔ Fault Find ✔ ✔ Depth in Power ✔ ✔ Passive Avoidance ✔ ✔ iLOC     Dual Bluetooth connectity ✔ ✔ Lithium-lon Battery ● ● Transmitters Tx-5 TX-10( standard ) Tx-10B Max. Output Power 5 W 10 W 10 W Active Frequencies 16 16 36 Induction frequencies 8 8 8 Current Direction Frequencies   6 14 iLOC remote control     ✔ Fault Find ✔ ✔ ✔ Induction field strength 0.85 1 1 Eco Mode ■ ■ ■ Lithium-lon Battery ● ● ● 3 year warranty on registration* ✔ ✔ ✔



Standard configuration only includes Rd 8200 + TX10

Locators and transmitters only. Does not include battery packs

Other features described are standard on the RD8200 Locators

✔ Available, enabled by default

●Option

■Available, disabled
