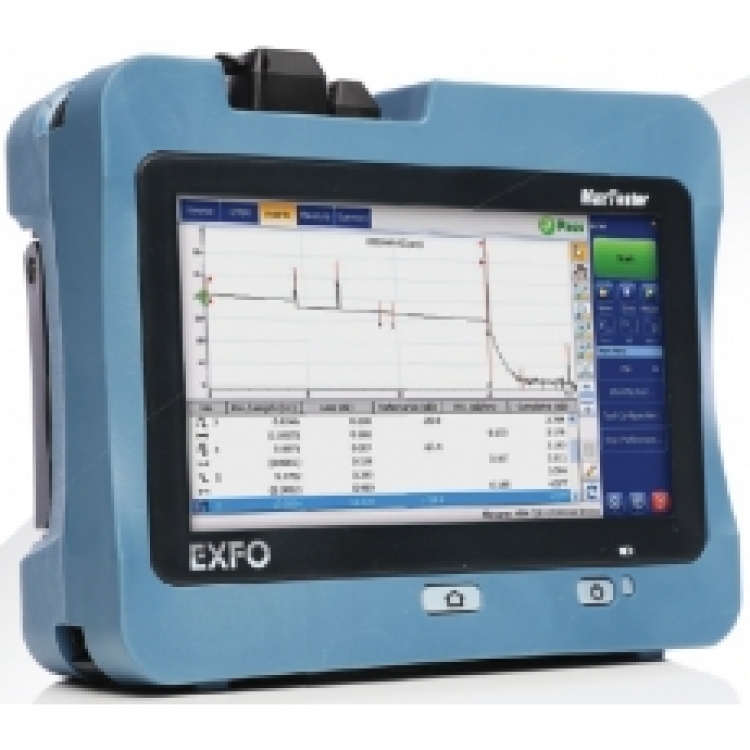

MaxTester-730D-SM8 EXFO OTDR

MaxTester-730D-SM8 EXFO OTDR Product Description

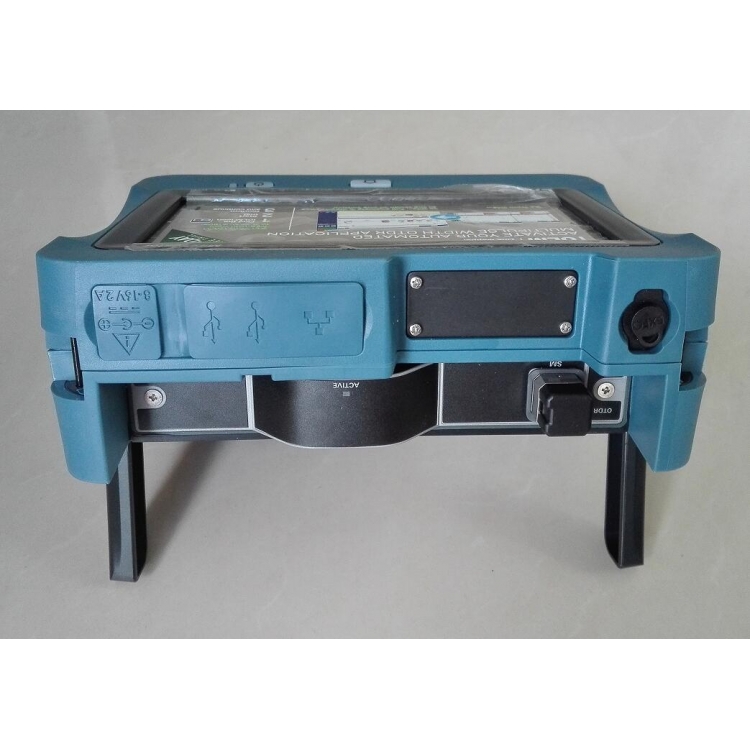

The MaxTester 700D OTDR Series comes with a Swap-Out connector which can easily be changed, as and when needed, without having to send the test unit to a service center.

The MaxTester 730D (MAX-730D) is a PON/metro OTDR that is optimized to test through optical splitters up to 1×128, hence ensuring complete end-to-end FTTH characterization. Furthermore, its high dynamic range makes it suitable for metro P2P testing.

MaxTester-730D-SM8 EXFO OTDR  Specification:

Product name	MaxTester-730D-SM8 SM OTDR 1310/1550nm/1650nm live fiber on single port 39/39/39db
Screen Size	7-inch
Dynamic range time	39/39/39dB
Center Wavelength(s):	1310 ± 20/1550 ± 20/1650 ± 15, 1650nm for live
Dead zones:	event dead zone (EDZ) 0.5 m, attenuation dead zone (ADZ) 2.2 m, PON dead zone 30 m
Origin of Country	Canada
Optical Fiber Type:	Singlemode Fiber
Distance range (km)	0.1-400km
Optional interface	APC or UPC interface available

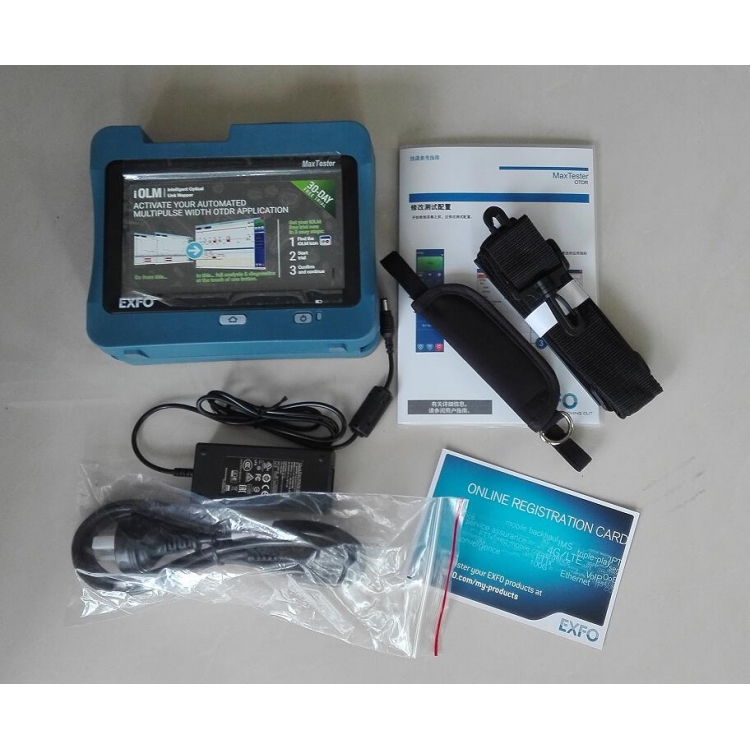

Package	Nylon bag

MaxTester-730D-SM8 EXFO OTDR  Key Features:

1.Rugged, handy, lightweight, tablet-inspired design built for outside plant

2.7-inch, outdoor-enhanced touchscreen–the biggest in the handheld industry

3.12-hour autonomy

4.Dynamic range up to 39 dB for up to 132 km point-to-point (P2P)

5.Short dead zones: event dead zone (EDZ) 0.5 m, attenuation dead zone (ADZ) 2.2 m, PON dead zone 30 m

6.FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter

7.Swap-Out connector, replaceable whenever necessary for optimal performance over time without undue service cost and downtime

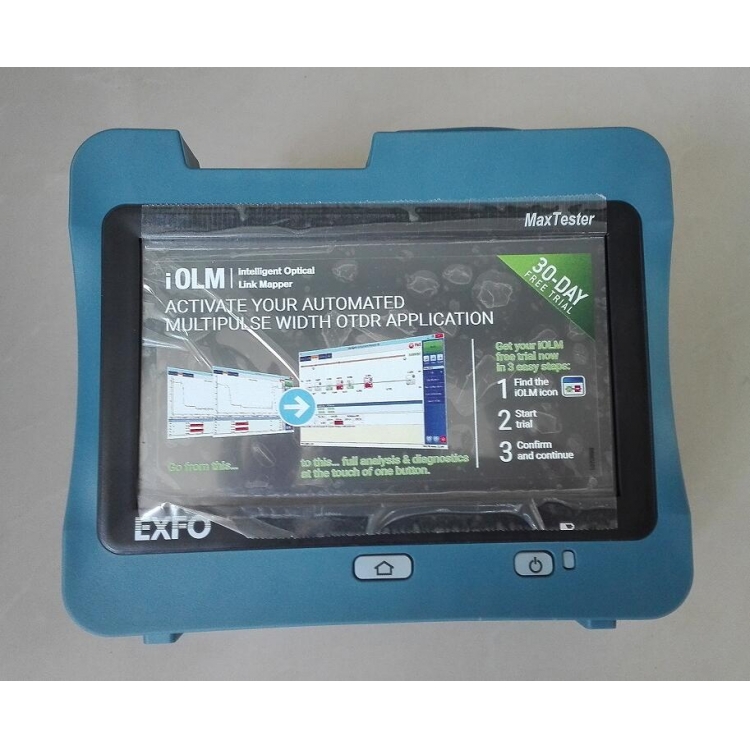

8.iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format

9.Industry-leading onboard PDF reporting and post-processing, included for all users

10.3-year warranty

MaxTester-730D-SM8 EXFO OTDR  Application:

1.FTTx/PON testing through splitters (up to 1×128)

2.FTTx service activation: GPON, EPON, XGS-PON, 10GE

3.EPON Access network testing (P2P)

4.Metro links testing (P2P)

5.Live fiber troubleshooting

6.Passive optical LAN (POL)
