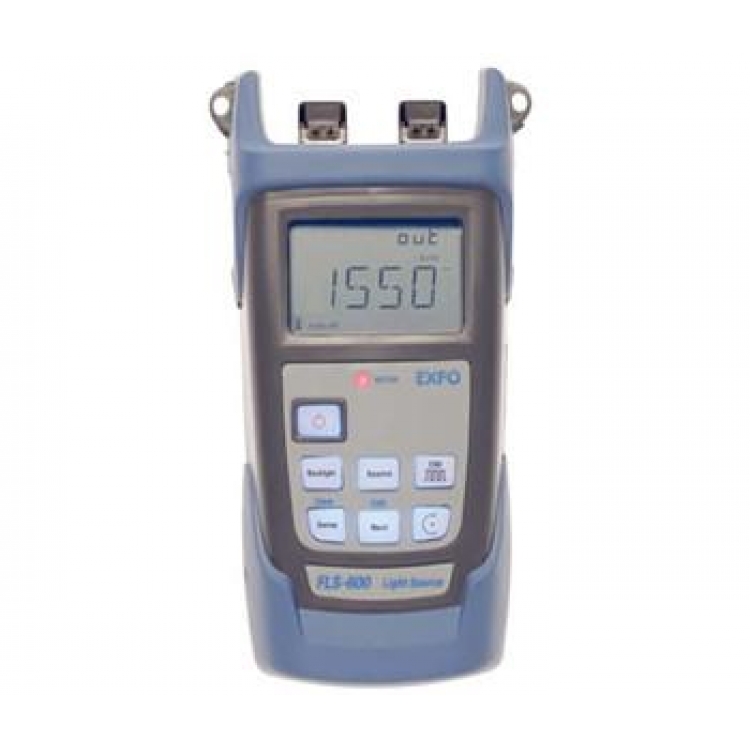

FLS-600 EXFO Optical Light Source

FLS-600 EXFO Optical Light Source Product Description

 Automatic wavelength switching

Using the FLS-600 in Auto-Switching Mode allows to automatically toggle between available wavelengths. When using this source with a compatible power meter (FPM/FOT-600), the latter recognizes the wavelength in use and switches to the proper calibration parameter.

Distant referencing

Signal encrypting can also give the receiving-end information on the power to be used as reference, helping ensure efficient referencing, even when the two units are far apart.

FTTx-ready

EXFO’s FLS-600 allows for the testing of passive optical networks (PONs) at 1310 nm, 1490 nm and 1550 nm, the three wavelengths recommended by the ITU-T (G.983.3) for PONs.

Rugged and versatile

Like all EXFO portable instruments, the FLS-600 is built for ruggedness, perfect for the harshest test conditions. It also features a backlit keypad/LCD , for easy operation in darker environments.



FLS-600 EXFO Optical Light Source Main Features

 Up to three singlemode wavelengths (1310 nm, 1550 nm, and 1490 nm or 1625 nm) on a single port, or four wavelengths (850/1300 nm and 1310/1550 nm) on two ports

Error-free, time-saving test features

Controlled multimode launching output

EF Ready: use with external launch mode conditioner for EFcompliant multimode results

FLS-600 EXFO Optical Light Source Specifications

MODEL	FLS-600-12D	FLS-600-23BL	FLS-600-234BL	FLS-300-235BL
Central wavelength (nm)	850 ± 25 1300 +50/–20	1310 ± 20 1550 ± 20	1310±20 1550±20 1625±15	1310 ± 20 1490 ± 10 1550 ± 20
Spectral width (nm)	50/135	≤5	£≤5	≤5
Output power (dBm)	≥–20/≥–20 (62.5/125 μm)	≥1/≥1	≥1/≥–3/≥–5	≥1/≥–4.5/≥–3
Power stability (dB)	±0.05 ±0.1	±0.10	±0.10	±0.10
Auto-switching	Yes	Yes	Yes	Yes
Tone generation (Hz)	270 Hz, 1 kHz, 2 kHz	270 Hz, 1 kHz, 2 kHz	270 Hz, 1 kHz, 2 kHz	270 Hz, 1 kHz, 2 kHz
Battery life (hours/typical in Auto mode)	50	50	50	50

FLS-600 EXFO Optical Light Source General specifications

Size (H x W x D)	190 mmx100 mmx62 mm  (7 1/2 in x4 in x2 1/2 in)
Weight	0.48kg(1.1lb)
Working temperature	-10 °C to 50 °C (14 °F to 122 °F)
Storage temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Relative humidity	0 % to 95 % non-condensing

FLS-600 EXFO Optical Light Source Standard Package

User guide, Certificate of Calibration, Instrument stickers in six languages,  AC adapter  ,lithium ion battery, shoulder strap and carrying case.
