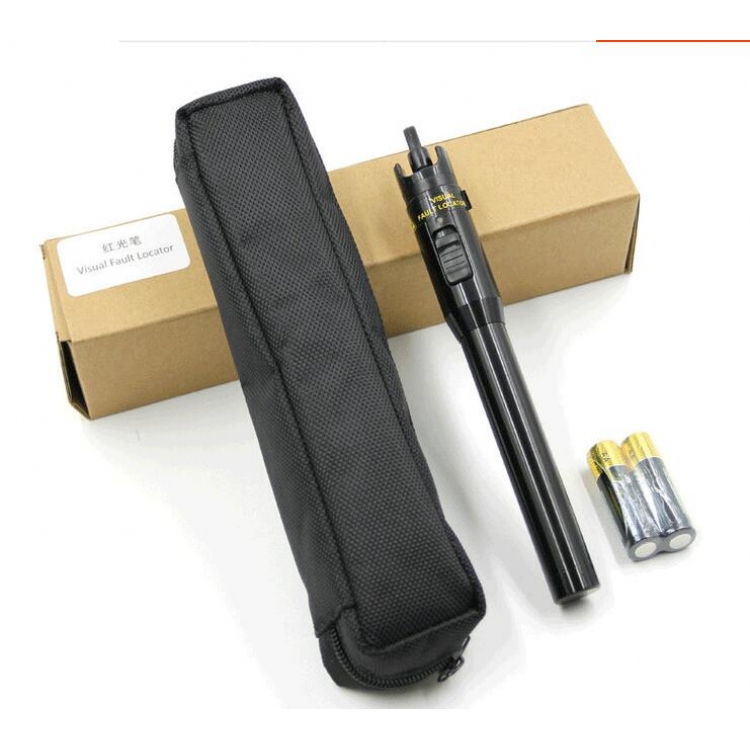

VF-10 visual fault locator

VFL-10 Visual Fault Locator uses the DFB-LD as the emitting component. Driven by constant current source, the indicator can emit stable red laser.The product can be used to inspect fiber failure when they connect with optical interface and be inserted into single mode or multi mode optical fiber.It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical component manufacture and research.

VFL-10 Accumulate credit times visual fault locator Features:

· output of visible red laser

· compact and lightweight, easy to carry

· stable performance, easy to operate

· Light Output (continuous light or pulsed light)

VFL-10 Accumulate credit times visual fault locator  Application

· multi-core cables for contradistinguish

· Check the optical fiber fault location and high loss caused by microbending section which OTDR can not be found

· At device resetting process, as initial setting light source of instructions

· added fiber converter output beam collimating red light

 VFL-10 Accumulate credit times visual fault locator Specifications

Lights	LD
wavelength	650nm
Output power	≥10mw
Distance of fiber identification	8km-10km
Output interface	Universal interface
Working temperature	-20°C~ +60°C
Storage temperature	-40°C~ +70°C
Length	180mm
Diameter	20mm
Continuously  working time	18h
Battery	3AAA   2Spec. 5No. battery
Weight	150g
