    OLP-35 Optical Power Meter (This goods is Free shipping, it is not included in the total fee distribution when calculating the distribution amount)

    • Price:Log in and view the price
    • Product Code:YM000214
    • Brand::VIAVI
    • Sales time:2016-12-28 16:05:01
    • Goods click count:667 times
    • Rank:: (0comments have been made)
    • Sales: recently sold 0
    Payment method: support online payment, do not support cash on delivery.
  • 规格型号
  • I would like to buy it:-+
    Subtotal:Log in and view the price
    Product classification

    Goods Brief:

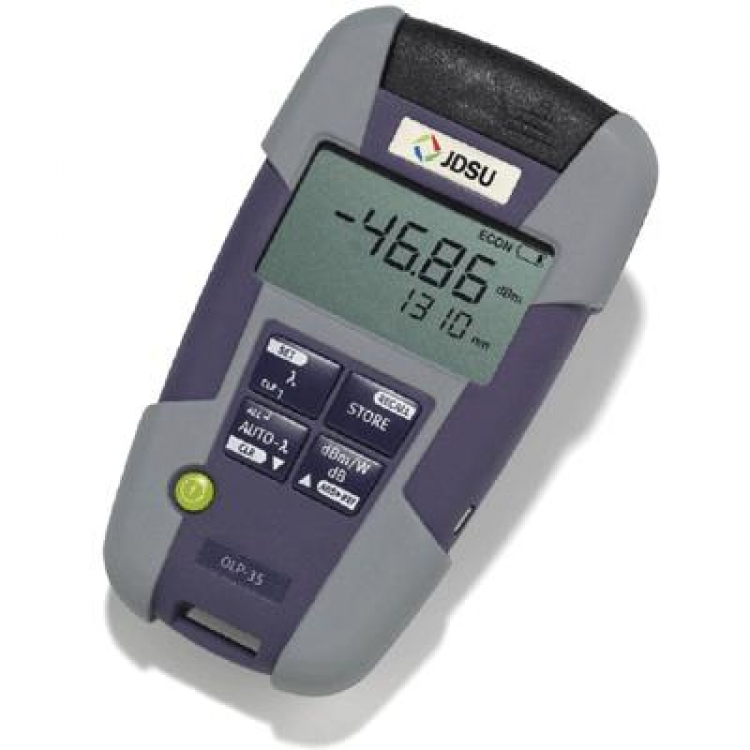

    OLP-35 Optical Power Meter Description

    The VIAVI SmartPocket OLP-3x series next-generation small, rugged optical power meters are ideal for quickly, easily, and conveniently measuring optical power level and loss in fiber networks from the field.

    The instruments’ rugged ergonomic design and large, tip display show relevant results and settings at the same time. Their intuitive one-button operation and automatic wavelength recognition is

    why technicians choose SmartPocket OLPs when they test fiber. SmartPocket instruments’ unprecedented data storage capacity for saving up to 100 results and optional micro USB port

    for downloading results to a PC fulfills all of your testing and reporting needs.



    OLP-35 Optical Power Meter Feature

              1). Higher power version for any CATV (with Analog RF transmission), or amplified DWDM system applications

              2). Rugged and pocket-sized design

              3). Large display combined with an easy-to-use interface

              4). Auto-wavelength recognition function for saving test time and error-free testing

              5). Internal data storage (100 results)

              6). Report generation with OFS-355 software

              7). Extra long battery lifetime (>200 hours)

              8). 3-years calibration period

              9). Universal optical interface for all 2.5 mm / 1.25 mm connector

              10). Individually settable wavelengths per 1 nm step

              11). Micro USB interface for power supply or data transfer

     OLP-35 Optical Power Meter Specifications

    Specifications

    Detector type

    Filtered InGaAs

    Optical interface / connectors

    Universal 2.5 mm / 1.25 mm

    Wavelength range

    780 to 1650 nm

    Wavelength settings

    780 to 1600 nm, step size 1 nm

    Programmable wavelengths

    5 presets (customized)

    Calibrated wavelengths

    850, 1300, 1310, 1490, 1550, 1625 nm

    Power Range

    -65 to +10 dBm

    Display range

    -65 to +10dBm

    Max. input power

    +16 dBm

    Absolute uncertainty

    ± 0.2 sdB (± 3%) with 1.25mm UPP adapter as accessory

    Linearity (-5 to +45°C)

    0.06 dB (-32 to +20 dBm)

    Tone detection

    270 Hz, 1 kHz, 2 kHz

    Auto λ mode

    Yes

    Multi λ mode

    TwinTest / serial TripleTest

    Internal memory

    100 results

    Data read out

    micro USB for PC transfer and AC power

    Operating temperature

    -10 to +55°C / 14 to 131°F
